Description
The illuminated sign is used to visually alert people in underground car parks and tunnels in the event of a fault in the exhaust air systems or in the event of an alarm
from the carbon monoxide CO (nitrogen monoxide NO, nitrogen dioxide NO₂) gas measuring system. The design and function of the signs comply with the regulations of the state building codes and VDI guideline 2053.
Thanks to the pictogram, the banner can be used internationally and multilingually.
Areas of application of the flashing illuminated banner “Switch off engine | Leave garage”:
It is suitable for areas such as:
- Underground garages
- Parking garages
- Parking decks
- private parking garages
- Tunnel
Features of the illuminated banner:
- Lugs and eyelets for wall or ceiling mounting

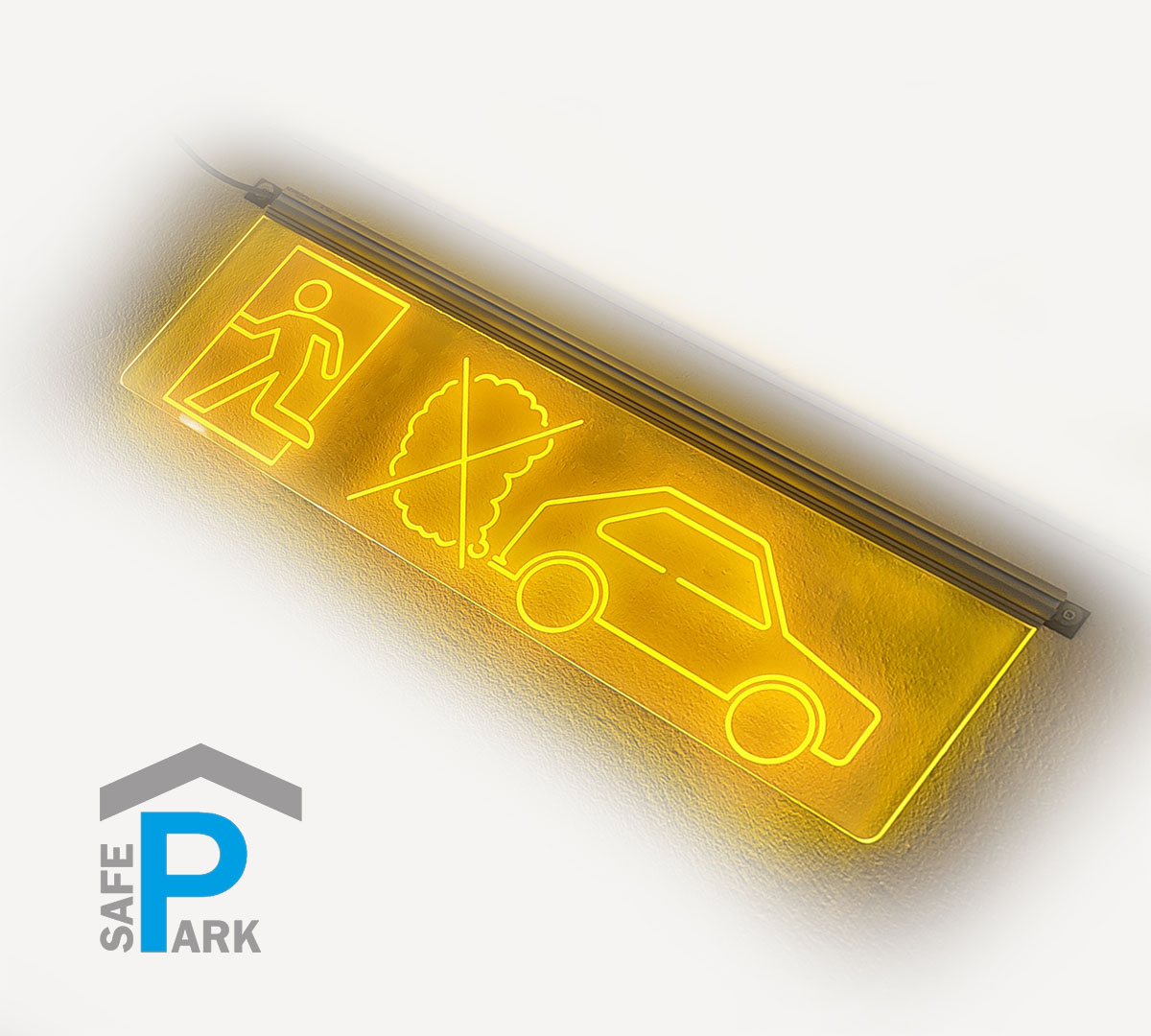

- Clear, yellow flashing message as a pictogram in the event of an alarm
- Very chic design made of aluminum and acrylic glass
- fulfills VDI guideline 2053
- TÜV-SÜD inspection
- Flasher unit integrated in light strip
- Supply via 24 VDC
- Dimensions: L/H: 605x187mm
- Can be used in combination with connection box for 24VDC
Note: This underground car park warning sign can be used in compliance with the standard if a central emergency power supply is available.
We also offer alternative product combinations with 230 VAC input and a decentralized emergency power supply in the respective junction box of the illuminated sign.
Suitable acoustic signaling devices (24 VDC or 230 VAC) can be integrated into the junction boxes of the flashing warning signs so that people and the surrounding area are warned comprehensively and in accordance with standards in the event of an accumulation of hazardous gases and particles.
Available accessories:
- Central emergency power supply
- Connection box for illuminated sign 24 VDC, article 12.077170.0
- Horns / acoustic warning sounders
- Further warning lights that can also be customized
- SafePark GATEWAY-C+6 or SafePark GATEWAY-C controllers and controllers
- Operating unit for control cabinet installation – SafePark GMC650C HMI Switchboard
- Controller as a practical wall panel – GMC 650C SafePark
