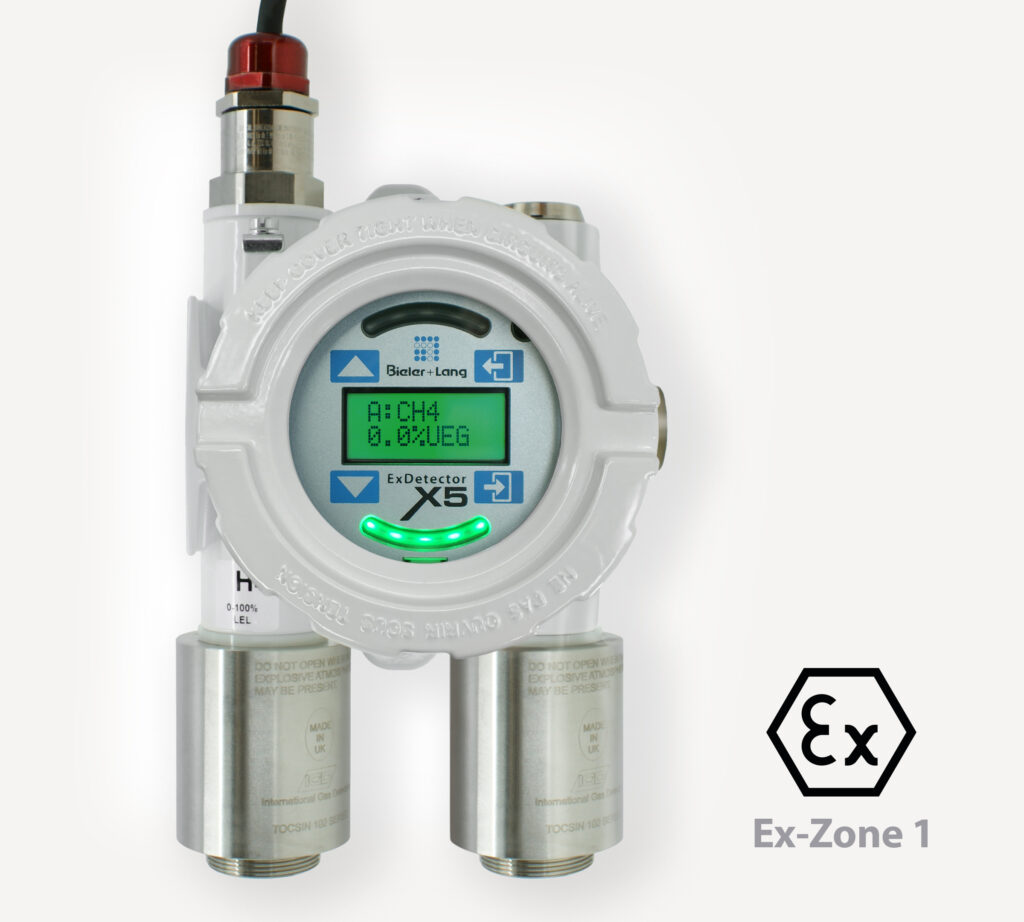

The ExDetector X5 is a gas detector approved for use in explosive environments of ATEX Zones 1 and 2, as well as dust environments of Zones 21 and 22.

It measures and displays the current concentrations of explosive or toxic gases and vapors. If required, it can be equipped with two sensor heads simultaneously. This allows the X5 to detect different gases using different measurement principles and sensor technologies at the same time.

Key Features of the X5:

• Contactless calibration by just one person
• Two independent sensor heads
• Two analog outputs, three relays
• 2-wire BUS communication

Multiple Configuration Options for the ExDetector X5

• The X5 transmitter can be seamlessly integrated into our addressable 2-wire BUS system and communicate with digital controllers such as GMC 750, GMC 650, GMC 635 Plus/Micro and GMC 650 switchboard.
• Alternatively, the X5 can be used as a 4–20 mA gas detector, compatible with evaluation devices such as the new GMC 8034 and GMC 8032.
• Additionally, the X5 can operate as a stand-alone unit, acting as a compact controller with extensive functionality.

Plug-and-Play Sensor Heads for the X5

• The ExDetector X5 automatically updates itself when one of our plug-and-play sensor heads is attached. No manual setup is required – our industry-leading long-life sensors handle this for you.
• The X5 can monitor over 400 flammable, toxic or asphyxiant gases, as well as oxygen, making it one of the most versatile detectors on the market and suitable for a wide range of applications.

Installation and Operation of the X5

• Easy to install, user-friendly, and highly durable
• Designed for wall mounting (optional ceiling mounting brackets available)
• Clear digital display of gas concentrations, alarms, and system errors using a traffic light system
• Remote operation possible via controller when connected to a BUS system

Status Monitoring – Everything at a Glance

The LED status display of the ExDetector X5 is bright enough to remain visible even in dark or dusty environments. It provides immediate status indication:

• Green – Everything is OK
• Red – Alarm, hazardous gas detected
• Orange – System fault

Overview and Key Features

Unmatched Versatility

✅ Two independent 4–20 mA outputs
✅ 2-wire Sentinel+™ digital communication
✅ One fault relay and two alarm relay

Fully Certified:

✅ ATEX, IECEx, and UKCA certified
✅ Designed for use in hazardous areas of Ex-Zones 1 and 2

User-Friendly Operation:

✅ Digital display of gas concentrations, alarms, and faults using a traffic light system
✅ Plug-and-play sensor heads
✅ One-person calibration with a magnetic pen

Our Commitment to Quality:

✅ Durable and robust design with low maintenance costs
✅ Compliance is confirmed through certifications from notified bodies

The ExDetector X5 – Precision, Safety, and Reliability in one powerful device.

• ATEX markings ExDetector X5:
  • II 2G Ex db IIC T6/T5 Gb
  • II 2D Ex tb IIIC T85ºC/ T100ºC Db
• Temperature Range:
  • -20ºC to +40ºC/+55ºC
  • (-4°F to 131°F)
• Electrical Outputs:
  • 2 independent 4–20 mA outputs, automatically adjusted to the connected sensor heads
  • 1 single-pole fault relay
  • 2 SPCO alarm relays
  • Relays: 4A at 24V DC, non-inductive
  • Auxiliary power connection: max. 0.5A

• Protection Rating: IP66
• Power Supply: 18 to 30V DC
• Cable Entry: 5 × M20 × 1.5
• Humidity:
  • 20% to 90% RH, non-condensing
• Weight: 1.1 kg (without sensor heads)
• One-person calibration directly on the device
• Extensive accessories available (see datasheet)
